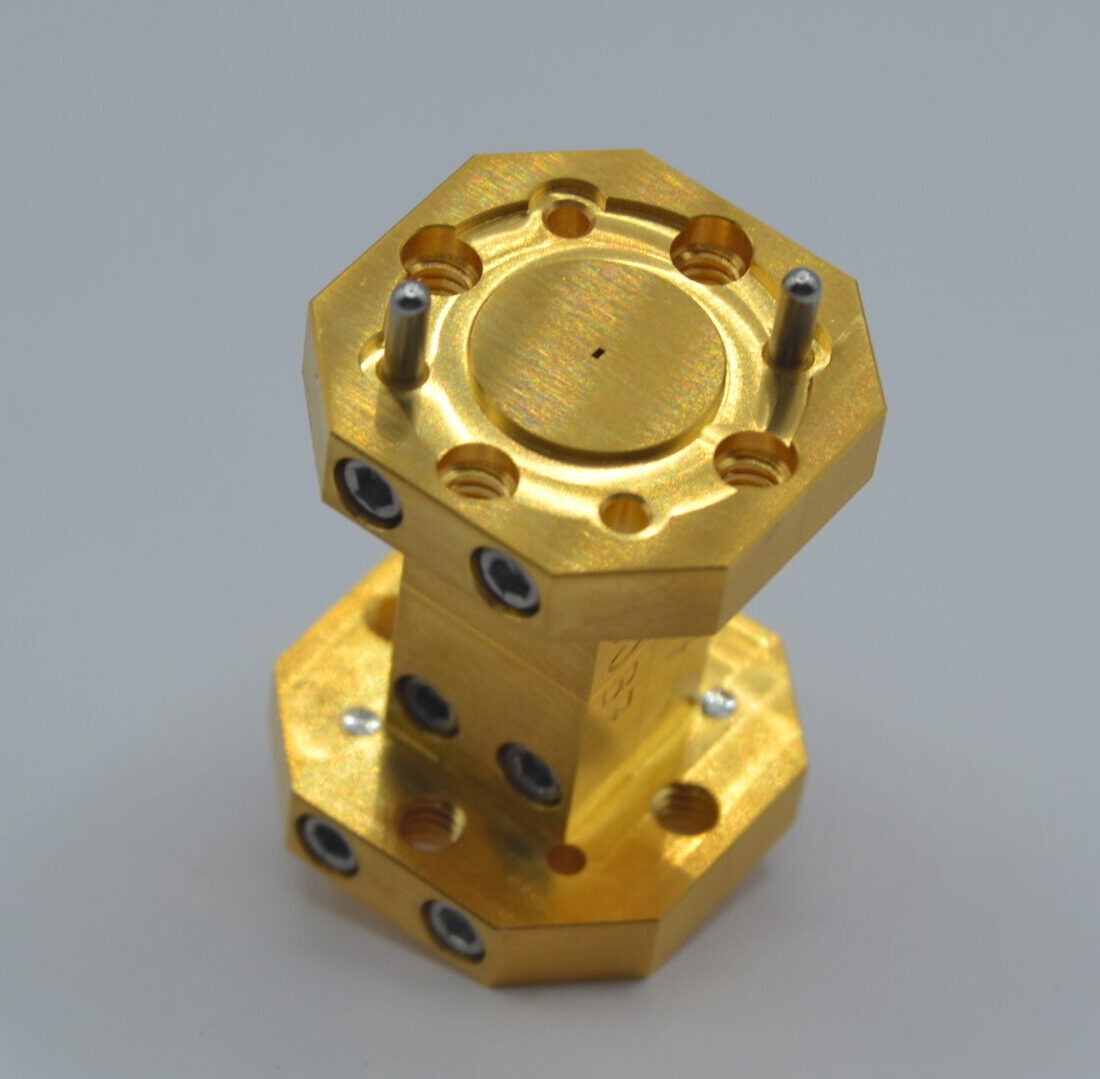

Waveguide Section 1″

Our straight waveguide sections have a lenght of 1″ and are available between 50 GHz and 1700 GHz. They are all manufactured using split block technology, which makes them highly precise, very robust and protected against bending and twisting. Due to this manufacturing technique and the goldplating of all surfaces, they offer minimal insertion losses and an excellent VSWR. The waveguides are equipped with UG387/U-M flanges on both sides as a standard, special requests can be taken into account at any time.

Description

Our straight waveguide sections have a lenght of 1″ and are available between 50 GHz and 1700 GHz. They are all manufactured using split block technology, which makes them highly precise, very robust and protected against bending and twisting. Due to this manufacturing technique and the goldplating of all surfaces, they offer minimal insertion losses and an excellent VSWR. The waveguides are equipped with UG387/U-M flanges on both sides as a standard, special requests can be taken into account at any time.

Key Features

  • Frequency: 50 GHz to 1700 GHz
  • robust and elegant design
  • manufactued in splitblock technology
  • low insertion loss
  • excellent VSWR

Applications

  • high precision measurement applications
  • measurement and instrumentation
  • VNA measurements

Specifications

Band Designation Frequency [GHz] “S21 typ. [dB]” “S11 typ. [dB]” Partnumber
WR 15 50-75 0,13 <-40 1487
WR 12 60-90 0,13 <-40 1488
WR 10 75-110 0,15 <-40 1489
WR 8 90-140 0,25 <-40 1490
WR 6.5 110-170 0,38 <-35 1492
WR 5.1 140-220 0,55 <-35 1493
WR 3.4 220-330 0,75 <-35 1494
WR 2.2 330-500 1,2 <-35 1495
WR 1.5 500-750 1,8 <-30 1496
WR 1 750-1100 3 <-30 1497
WR 0.65 1100-1700 4,5 <-25 1498

Diagram

Insertion loss waveguide WR10
Insertion loss waveguide WR10

Mechanical Dimensions

Mechanical Dimensions Waveguide straight 1
Mechanical Dimensions Waveguide straight 1″

On request we are happy to provide the .stp model.

In addition to our standard products, each component can be customized to meet your specific requirements.

We are happy to implement index dowel pins as well as modified flanges on request.
